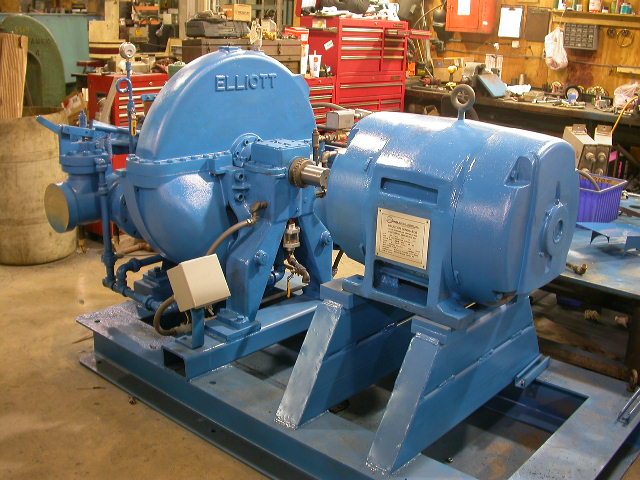

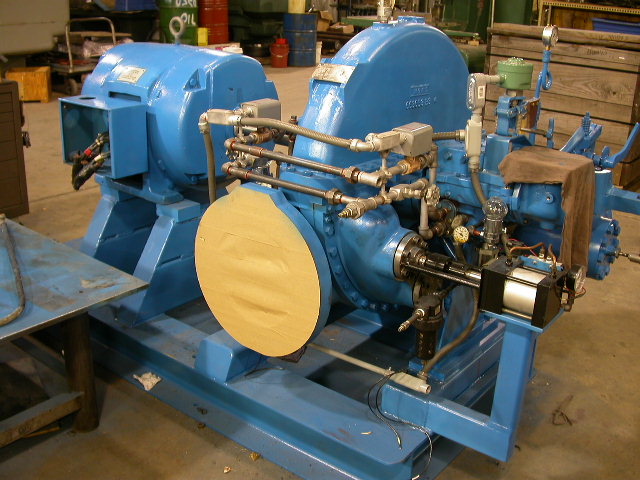

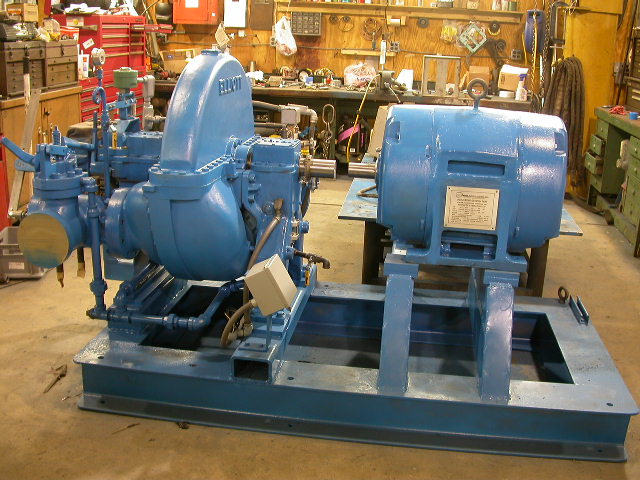

Elliott Turbine Generator with Switch Gear

DYRT Turbine
149 H.P.
3650 rpm max rpm 3750 trip speed
150 PSIG inlet max inlet 250 PSIG
366 degrees F. temp inlet max temp. 500 degrees F
0 PSIG exhaust max exh. 60 PSIG
Book 100 First critical 9350 rpm

Induction Generator G.E. Type Kopig
KW 80 KVA 107 PF 75%
RPM 2 pole 3600 plus slip rpm
Volts 240 Amps 258 HZ 60
Phase 3 Frame 444 US
Switch Gear & Panel
Controls, switch gear G.E.
Controls Red line
