Steam Path - Consulting Services

Turbine for sale

Turbine for sale (2 images of specs in client folder)
1- 10m/w 50 cycle turbine generator set
Manufacturer  Allen Turbines
Turbine is in dry storage, as is available immediately

10000 KW, Inlet 600 PSIG, Exh. 30 PSIG, ALLEN, 11kv/3/50 hz, 1972:-1   Our stock number: 35933

Manufacturer: Allen
Rating: 10000 kw
Inlet steam: 42.4 barg/410 deg c(600 psig/750 deg f)
Exhaust steam: 2.06 barg (30 psig)
Speed: 8040 rpm
Inlet steam flow: 79365 kgs/hr(174,603 lbs/hr)

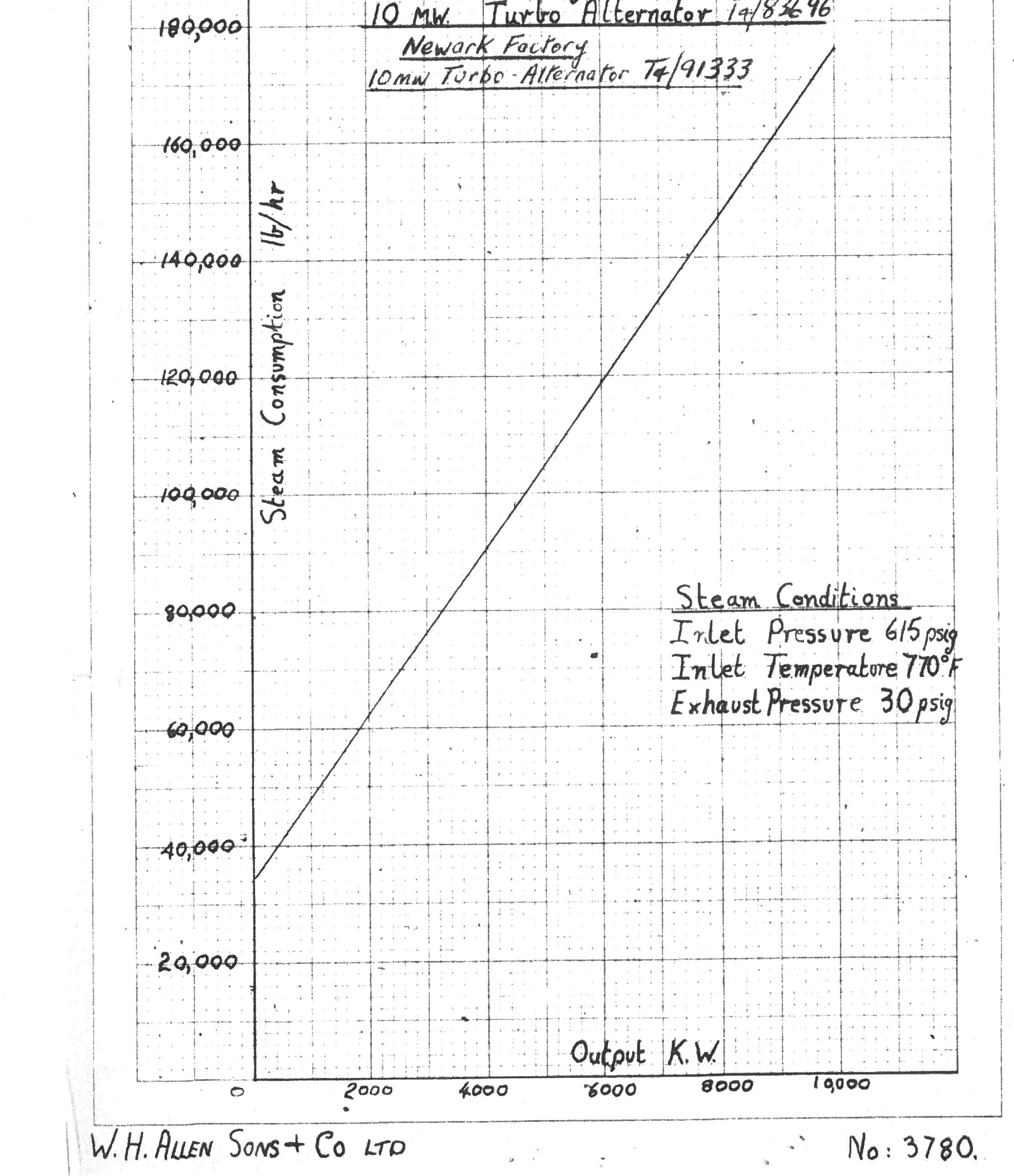

Steam rate @ 10 mw: 7.935 kg/kwh (17.46 lbs/kwh)

Gear reducer:
Manufacturer: Allen
Rating: 11,690 kw
Speed: 8040/1500 rpm
Reduction ratio: 5.36:1

Generator:
Rating: 12500 kva
Volts: 11 kv, 3 phase, 50 hz
Amps: 656 amps
Exciter: Brushless

Scope of supply:
Steam turbine generator, lube oil system, control panels.

History:
Year built 1972
Year shutdown: 2007
