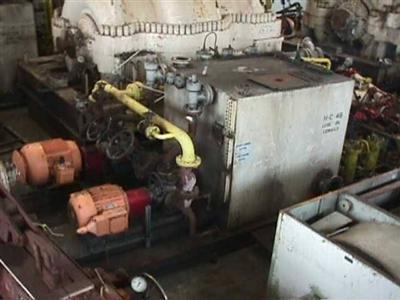

3000 KW, 3750 KVA, Steam Turbine Generator

This consists of:

(1) steam turbine mfd by WH Allen and Sons, SN T4/7284(7), 4500 HP, speed 10250 rpm, gearbox speed 1500 rpm. Inlet pressure 635 psi @ 670 deg F, exhaust pressure 100 psi.
(1) generator mfd by Bruce Peebles, SN 94359, 1500 rpm, 11000 volt, 50 Hz, Type ‘B’ insulation.
(1) exciter generator, mfd by Westinghouse, 17.6 KW, 18.5 KVA, 1500 rpm, 3 phase, 50 Hz, 30.5 volt.
(1) oil cooler
(1) oil filter
(1) gland condenser
(1) combined stop & emergency valve
(1) control panel
